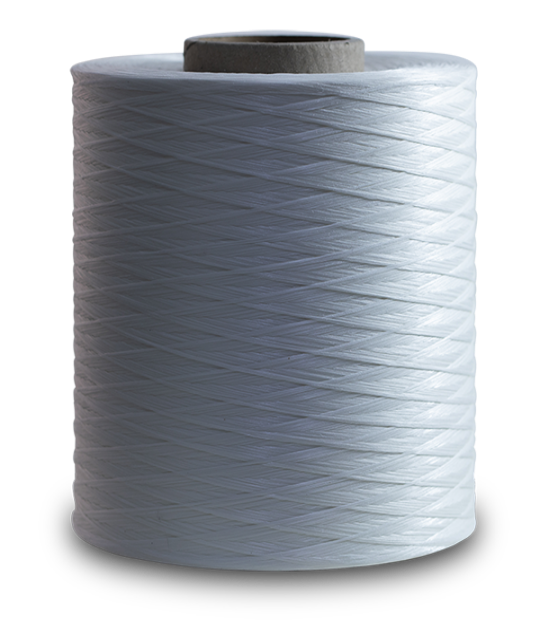

Water Blocking Yarn Product Code
- ZSH30/ZSH45/ZSH60/ZSH100/ZSH200 Construction
- Polyester yarn with water blocking coating Applications
- Inside the conductor of a power cable for conductor water blocking purposes
- Between components of an optical fiber cable for water blocking purposes Characteristics
- Excellent swelling performance
- Proven long-term and short-term stability
- Reach and RoHS compliant
Water Blocking Rope
Product Code
- ZSE3/ZSE5/ZSE8 Construction
- Slit water blocking tape tightly twisted into a rope Applications
- In power cable for conductor water blocking Characteristics
- Water blocking big space in Milliken conductor
- Excellent swelling performance
- Excellent filler
- Proven long-term and short-term stability
Low Smoke Halogen Free Flame Retardant Tape
Product Code
- ZRD130/ZRD180 Construction
- Glass fiber fabric coated on both sides with low smoke, halogen free, and flame retardant compound Applications
- In control cables, mining cables and indoor building wires for bedding, binding and separating purposes Characteristics
- In low-smoke halogen free power cable
- In optical fiber cable as binding tape
- Retardant to flame; low-smoke in fire; no halogen
- Process friendly
- Reach and RoHS compliant
Copper Wire Shielding Tape
Product Code
- TSD5020/ TSD8020 Construction
- Tin-coated copper wires woven with polyester yarn Applications
- Typically used under corrugated aluminum sheath of HV and EHV Characteristics
- Effectively conduct heat
- Contribute to the even distribution of electric field under corrugated aluminum sheath
- Excellent bedding
- Proven long-term and short-term stability
- Process friendly
Copper Wire Shielding Tape
Product Code
- BZTSD5020/ BZTSD8020 Construction
- Tin-coated copper wires woven with polyester yarn
- Semi-conductive water blocking coating on both sides Applications
- Typically used under corrugated aluminum sheath of HV and EHV power cable Characteristics
- Effectively conduct heat
- Contribute to the even distribution of electric field under corrugated aluminum sheath
- Swell on both sides; effectively block water under corrugated sheath
- Excellent bedding tape
- Process friendly
- Proven long-term and short-term stability
